Ecome ET-UV200 136-174/400-520 MHz FM Ham dual band Two-way Radio

  • 5 - 19 Sets
    $25.00
  • 20 - 49 Sets
    $24.00
  • >=50 Sets
    $22.50
Color:
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Ecome
Model Number:
ET-UV200
Type:
Handheld
Frequency Range:
65-108,136-174, 400-520MHZ
Talk Range:
1-5km
Storage Channel:
128
Dimensions:
158 x 110 x 32mm
Frequency Stability:
±2.5ppm
Antenna:
High gain DualBand antenna
Antenna Impedance:
50Ω
Operating Voltage:
DC 7.4V
Mode of operation:
Simple or semi-duplex
Output power:
5W / 1W (Max 5W)

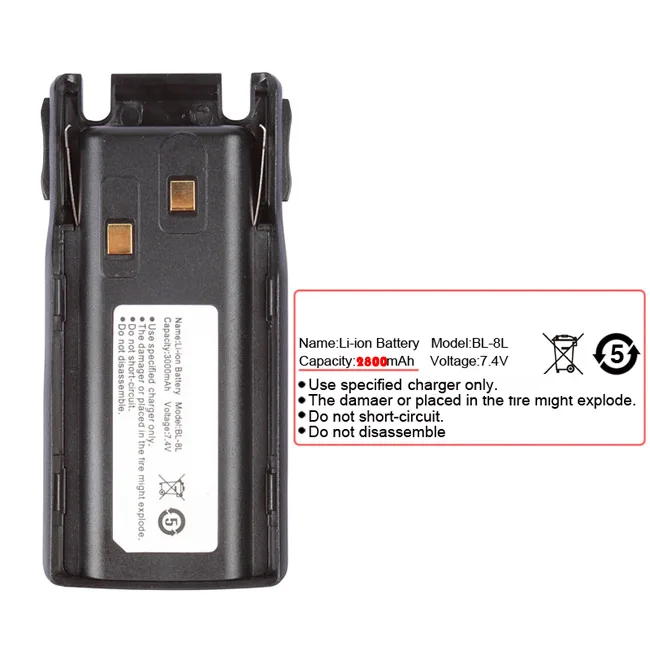

Battery capacity:
2800mAh
Weight(including battery, antenna):
238g
Intermediation distortion:
10%
Applications:
Outdoor
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
ET-UV200 Dual Band FM Transceiver, 7.4V/2800mAh Battery, Antenna, Power Adapter, Belt Clip, Hand Strap, Battery Charger, User Manual
Port
GuangZhou

Ecome ET-UV200 136-174/400-520 MHz FM Ham Two-way Radio

product recommended

Ecome-ET-650S Ecome-ET-79 Ecome-ET-D889 Ecome-ET-D446 Motorola-XiR-P8668i Ecome-T-220 Motorola-XiR-P3688 Kenwood-TM-481A Ecome-MT-660 Ecome-MT-690

Products display

 Et-uv200 (13)ET-uv200_ceEt-uv200 (26)

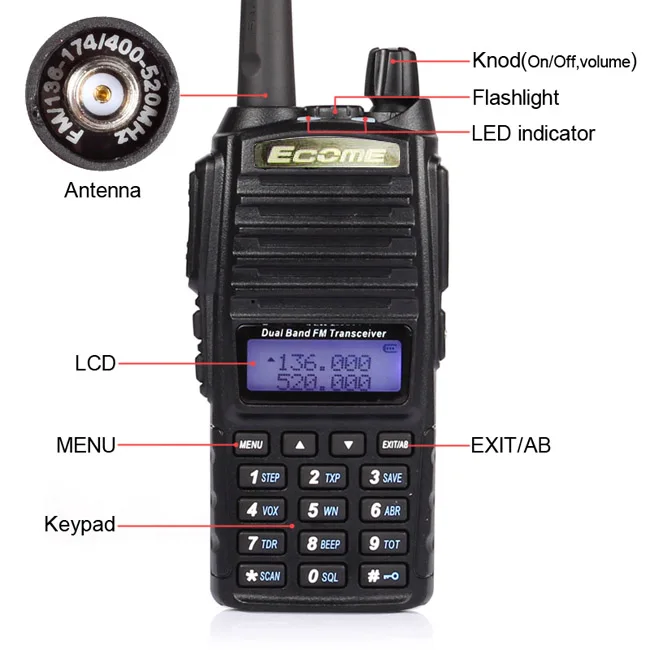

Functions



1). 25KHz/12.5KHz Switchable



2). FM Radio (65.0MHz-108.0MHz)



3). Large LCD Display



4). LED Flashlight



5). Hight /Low RF Power Switchable



6). Voice companding



7). 50 CTCSS/ 104DCS coder & tone searching



8). dual standby



9). PC programmable



10). High/Low TX power selectable





Performance Characteristics
Frequency:

65-108MHz(FM Receive only),

136-174MHZ and 400-520MHZ (TX/RX)

Channel No

128 channels
Power output

5W / 1W (Max 5W)

Frequency Stability

±2.5ppm

Antenna

High gain DualBand antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

Antenna

SMA -Female
Dimensions H x W x D

158 x 110 x 32mm (not included antenna)

Weight(including battery, antenna)

238g

Power adapter

Input: AC100-240V, 50-60Hz

Output: DC10V/500mA

Plug Type

US

Modulation Mode

16KΦF3E/11KΦF3E

Maximum deviation

5kHz(Wide) / 2.5kHz(Narrow)

Spurious Radiation

<7μW

Adjacent Ch. power

≥-65dB(Wide) /  ≥-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

10%
